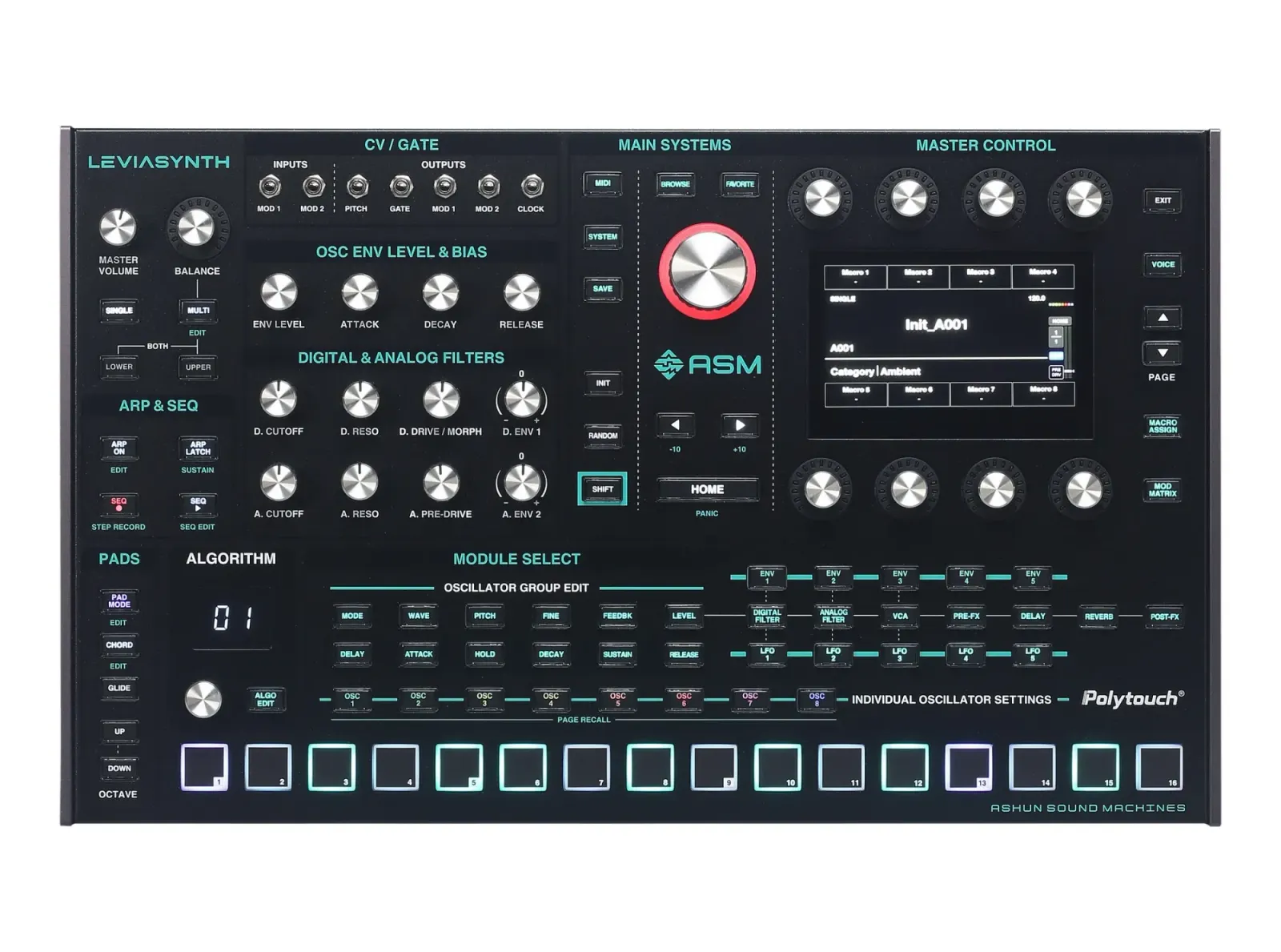

Most synths that call themselves hybrids mean something narrower than they let on: digital oscillators, plus a filter modeled after an old analog circuit, still entirely inside a chip. Ashun Sound Machines' Leviasynth Desktop runs two filter stages in series, and only the first one is digital. Sound starts in eight algorithmic oscillators per voice, gets shaped by an 18-model digital filter, then gets pushed through a genuine analog pre-drive circuit into a physical four-pole low-pass filter. Almost nothing in that back half of the chain is simulated.
Unknowndivide may earn a commission from purchases made through links in this post. As an Amazon Associate we earn from qualifying purchases.
Sixteen voices, eight oscillators each, is the headline number, but the more interesting part is what ASM calls algorithms: ways of routing those eight oscillators to modulate or carry one another, borrowed conceptually from FM synthesis but built around phase modulation, linear FM, pulse width modulation, HTE sync and three flavors of phase distortion. There are more than 140 preset routings and room to build custom ones, and a morph function that steps through eight chosen algorithms and blends between them in real time rather than jumping. That's a genuinely different sound-design problem than turning a filter cutoff knob, closer to rewiring the instrument's internal signal flow while it's playing.
The desktop format strips out the 61-key semi-weighted keybed from the Leviasynth Keyboard and replaces it with sixteen Polytouch pads carrying polyphonic aftertouch, plus VESA and 19-inch rack mounting for anyone building a compact, keyboard-less rig around a separate controller. Everything else, from the modulation matrix and touchscreen to the three-track sequencer and eight-mode arpeggiator with ratchet and probability controls, carries over unchanged from the flagship keyboard version. It's the same engine ASM built to follow up the Hydrasynth, just in a footprint meant for a studio that already has a keyboard it likes.
Shop it at Perfect Circuit or at other retailers.
The signal path, step by step
ASM describes the Leviasynth as a digital and analog hybrid, and the order of the chain is the whole idea:
- Oscillators. Eight per voice, with seven synthesis types available across more than 140 algorithms, including ones you build yourself. The algorithms decide which oscillators act as carriers and which modulate them.
- Digital filters. A filter section with 18 models, plus morphing and drive.
- Analog pre-drive. A custom analog drive stage that adds weight before the final filter.
- Analog low-pass filter. A Q-compensated four-pole, 24 dB per octave low-pass filter, which keeps the low end from thinning out as you turn up resonance.
Two independent layers can be stacked or split, and voices can be paired into binaural stereo sets with separate modulation on each side for wide, moving sounds.
Modulation and performance
The modulation section is deep even by ASM standards: thirteen envelopes, five LFOs, a modulation matrix, per-voice modulation offsets and Macro controls. Real-time algorithm morphing lets the sound drift between routings rather than jump. For playing and writing, there is a three-track sequencer and an eight-mode arpeggiator with Ratchet, Probability and Entropy controls. The keyboard model adds illuminated wheels and a four-octave ribbon, and the Desktop keeps the 16 Polytouch pads with polyphonic aftertouch and ASM's Envelope Bias touch response.
Connections on the Desktop
According to the owner's manual, the Desktop is built to sit in a larger rig:
- USB type B, class compliant for MIDI. It is not an audio interface, so you still need cables from the outputs.
- MIDI In, Out and Thru.
- CV and Gate inputs and outputs for working with modular synths.
- Two balanced 1/4 inch outputs and a headphone output.
- Sustain and expression pedal inputs, both polarity-sensing or reversible.
- Rack ears in the box, plus mounting points for an optional VESA 75 mm bracket and a Kensington lock port.
Effects include chorus, flanger, rotary, phaser, lo-fi, tremolo, EQ, compression and distortion, in independent pre and post effects slots. ASM's free Manager app handles patch organization, backups and transfers.
Who it suits
Pick the Desktop if you already own a keyboard controller and want the full engine in a box that fits a rack, a desk arm or a modular setup. Pick the Keyboard if you want the 61-key semi-weighted Polytouch keybed with polyphonic aftertouch and the wheels and ribbon built in.
Our call: pick the Leviasynth Desktop if you already own a keyboard you like and want ASM's eight-oscillator engine with sixteen Polytouch pads instead of the 61-key keybed. Hydrasynth owners should try it before assuming it is more of the same, since the analog pre-drive is new. Skip it if you want a simple synth to learn on.
